Differentia inter diaphragma pressura MODULUS et humilis pressura Diaphragm METIOR

Diaphragma pressura MODULUS

In cotidie opus, talis condiciones saepe fieri ubi users actu opus diaphragma pressura gauges, sed in contractibus vel in phone colloquia, sunt membrana pressura gauges. Causa haec duo genera pressionis gauges eadem specie. Nunc, lets breviter inducere principalis differences inter duo genera Gauges.

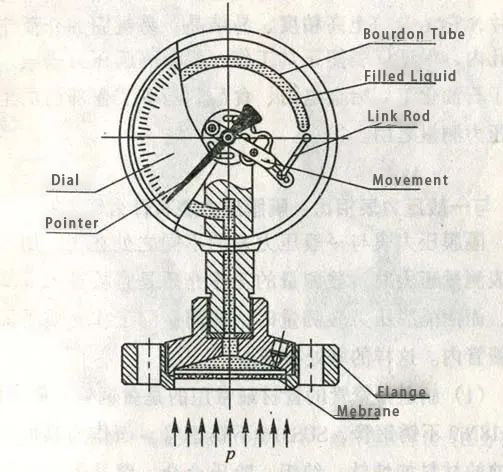

Et opus principium diaphragma pressura METIOR

Cum diaphragma pressura METIOR mensuras pressura, in metiri opus medium directe agit in desolatione diaphragma. Diaphragma subit sursum deformatio. Medium pressura est traducitur ad fundum fistulam per impletionem liquidum intra fundum fistulam, causando finem fons fistulam subire elastica deformatio. Cum ope in junctura mechanism, in calces hastile de mechanism agitati est gyrari, ita causare monstratorem ad indicant metiri pressura valorem in scale.

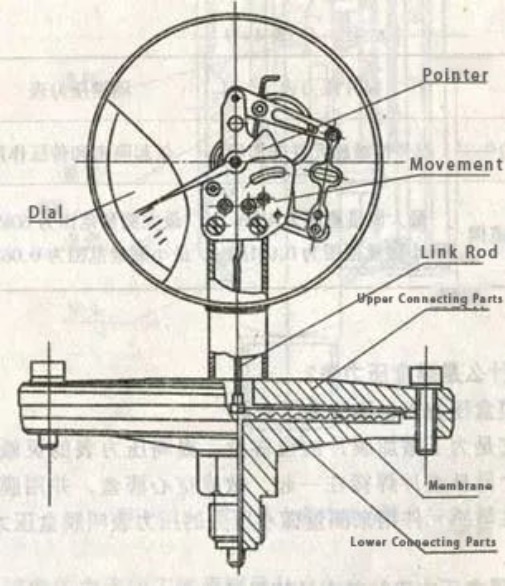

Et opus principium humilis pressura diaphragma METIOR

Sub auctoritate pressura, mensuram operantes medium directe agit in elastica diaphragma. Diaphragma subit elastica deformatio sursum (quia mensuræ positivum pressura) vel deorsum (quia mensuræ negativam pressura). Per connectens virga mechanism certum ad centrum diaphragm, quod agit in calces hastile de mechanism ad gyrari, ita causare monstratorem ad indicant metiri pressura valorem in scale.

Pelagus differences inter duo genera pressura Gauges sunt:
(I) Alia elastica Elementa:
Et elastica elementum de diaphragma pressura MODULUS est vere fistulam, dum diaphragma tantum serves ut separator. Et elastica elementum humilis pressura diaphragma MODULUS est CONRUGIS Diaphragma. Metiri pressura actus in diaphragmate, causando eam subire elastica deformatio sursum (vel deorsum). Et pressura valorem indicavit per junctura mechanism soluta ad diaphragma.

(II) alia praecisione grades:
Diaphragma pressura MODULUS plerumque habet accuracy genus est 1.6; Dum humilis pressura diaphragma MODULUS habet accuracy genus of 2.5.

(III) alia mensura Ranges:
Diaphragm pressura MAGE ME PRINCIPIO Range:

Range
(MPa)

0 0,1 0 ~ 0.16 0 ~ 0.25 0 ~ 0.4 0 ~ 0.6
0 ~ I 0 ~ 1.6 0 ~ 2.5 0 ~ IV 0 ~ VI 0 ~ X
0 ~ XVI 0 ~ XXV 0 ~ XL

Minimum pressura Diaphragm METIOR MAGISTRA Range:

Range
(KPA)

Negativa pressura: -60 ~ 0 -40 ~ 0 -25 ~ 0 -16 ~ 0 -10 ~ 0 -6 ~ 0 -4 ~ 0 -2.5 ~ 0 -1.6 ~ 0

Positivum pressura: 0 ~ 1.6 0 ~ 2.5 0 ~ IV 0 ~ 0 ~ I 0 ~ 1.6 0 ~ 2.5

Positive et negative pressura: -0.8 ~ 0.8 -1.2 ~ 1.2 -3 ~ III -5 ~ V -8 ~ VIII -12 ~ XII -20 ~ XX -30 ~ XXX

Range
(MPa)

Vacuum: -0.1 ~ 0

Vacuum pressura: -0.1 ~ 0,06 -0.1 ~ 0.15 -0.1 ~ 0.3 -0.1 ~ 0,5 -0.1 ~ -0.1 ~ -0.1 ~ 1.5 -0.1 ~ 2.4

Pressura: 0 0.06 0 ~ 0.16 0 0.25 0 0.4 0 ~ 0.6 0 ~ 0 ~ 0.6 0 ~ ~ 0 ~ 2.5

(IV) diversis temperatus iugis ad usum:
Diaphragma pressura Gauges Potest disposito cum radiator aut hose structurae et sunt ad metimur summus temperatus environments. Tamen, humilis pressura diaphragm Gauges, debitum ad eorum junctura transmissionem mechanism, non uti refrigerationem cogitationes.

Conclusio:

Cum mensuræ pressura plerumque mundus gasorum, aqua vel oleum liquida, immaculatam ferro pressura gauges potest electus. However, if the measured medium has strong corrosiveness (such as hydrochloric acid, moist chlorine gas, iron oxide), high viscosity (such as latex), is prone to crystallization (such as salt water), prone to solidification (such as hot asphalt), or contains solid suspended matter (such as sewage), then a pressure gauge is no longer suitable. Etiam 316L immaculatam ferro fistulam erit corroded ab hydrochloric acidum. Et suspensus materia vel impudicitiis in bitumine et purgamentos et cito angustos pressura MANUBRUM scriptor pressura guiding foramina, causando instrumentum perdere functionality.
Ideo in his conditionibus, haec duo genera non-contactu pressura Gauges valde idoneam. Vos can sumo diversis corrosio repugnans diaphragma membrana materiae secundum diversas fortis mordax media ad consequi ad corrosio praeventionis. Ob coram diaphragm membranam potest ne fortis mordax, princeps viscositas, facile crystallizing et facile solidatur media de fluit in pressura guiding foraminis, cursus instrumentum potest operari Northmanni. Ideo fundatur in ipsa operantes pressura, in usus habitum in coeptis, eligere convenientem genus diaphragm pressura MODULUS vel membrana pressura MODULUS. "
