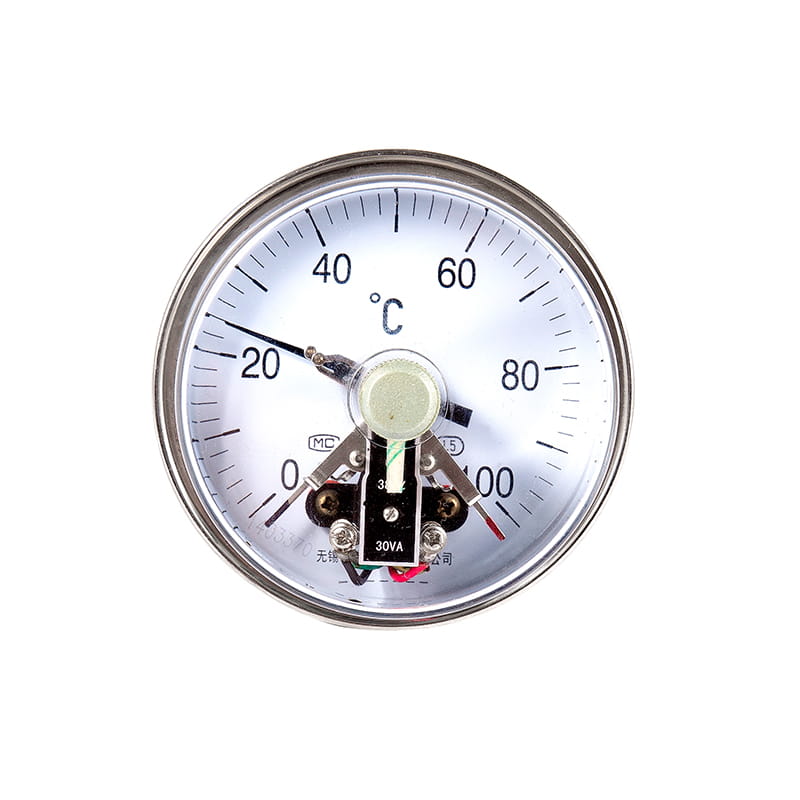

WSSXC Series Magnetic Electric Contact Bimetallic Thermometrum

Exemplar

WSSXC, IV

WSSXC-V

Nominis diameter (mm).

Φ 100

Φ 150

Apta relatorum

M27 × 2

Diametrum praesidio tubo ( mm )

10

Tutela fistulam sustinere pressura ( MPA )

6.3

Genus accuracy

1.5

Mensurae ( ° C.) )

-60 ~ 0

0 ~ 50

0 ~ 100

0 ~ 150

Cell valorem ( ° C.) )

1

1

2

2

Mensurae ( ° C.) )

0 ~ 200

0 ~ 300

0 ~ 400

0 ~ 500

Cell valorem ( ° C.) )

5

5

10

10

Insertio longitudinem (mm).

L = LXXV ANTOLIUMANTOLIUMANTOLIUM; 100 ANTOLIUM; 150 ANTOLIUM; 200 ANTOLIUM; 250 ANTOLIUM; 300 ANTOLIUM; 400 ANTOLIUM; 500 ┅┅ 2000

Tempus constant

≤ 40s

Electrica parametri

Wssxc-III

Contact Capacity: 30va ; Maximum Voltage: 220V ac

WSSXC, IV

WSSXC-V

Contact Capacity: 30va ;

Maximum Voltage: 380v ac; 220V DC

Terminatio cuneos

LIGNUS

1

2

3

4

Superius terminum output

Inferior terminus output

Et output est commune

EARDA

Ingressu praesidio

Ip55

Urgeant vexillum

J. / T (VIII) DCCCIII

Nota: De iuncturam filo fieri potest in pipe relatorum G1 / II , G3 / IV Itaque secundum user requisita.

Axial ascendens ( I)

Radiale ascendens ( 11 )

120 ⁰ Adscendens ( 21 )

Gimbal ascendens ( 81 )
