◆ Model: YC40 Yc60 Yc60 Yc75 YC100 YC100
◆ Usus: Hoc seriem instrumenta sunt idoneam ad mensuræ pressura liquidae, Gas, vapore et aliis fluidi media sine CREPITUS periculo, crystallization vel solidificatione naves et related apparatu.
Haec series instrumenta habent luminosum genus, in pelagus scala de dial et fronte finem monstratoris est iactaret cum activo vel passiva permanens luminosi agente, ita pressura valorem potest esse in tenebris.
Crusta huius series instrumenta est plene signatum et habet aliquam resistentiam ad marinae corrosio, ita protegens internum components instrumenti a dampnum et corrosio fluctus et maris.
Haec series instrumenta potest etiam repleti humilis-viscositas damping oleum in testa, cum facultatem resistere vibrationis operantes environment fecit per tempestatibus in mare et medium pressionem pulsus.
Haec series instrumenta maxime usus est in Offshore shipping, Offshore oleum et Gas agri, Offshore EXERCITATIO Platforms, seabed Mining, intus navigation et alia industries.
◆ technica parametri :
| Model Number | Ylm60 | Ylm100 | Ylm150 | |
| Nominis diameter | Φ 60 | Φ 100 | Φ 150 | |
| Adscendens type | Ⅰ | * | * | * |
| Ⅱ | * | * | * | |
| Ⅲ | * | / | / | |
| Ⅳ | * | * | * | |
| Ⅴ | * | / | / | |
| Ⅵ | * | * | * | |
| Thread Connector | M14 × 1.5 | M20 × 1.5 | ||
| Genus accuracy | 2.5 | 1.6 | ||
| Mensuram range ( MPA ) | Vacante: -0.1 ~ 0 Vacuum pressura: -0.1 ~ -0.1 0,06 ~ -0.1 0.15 ~ 0.3 -0.1 ~ -0.1 0,5 ~ -0.1 0,9 ~ 1.5 -0.1 ~ 2.4 Pressura: 0 ~ 0.1 0 ~ 0.16 0 ~ 0,25 0 ~ 0,4 0 ~ 0.6 0 ~ I 0 ~ 1.6 0 ~ 2.5 0 ~ IV 0 ~ 6 0 ~ X 0 ~ XVI 0 ~ XXV 0 ~ XL 0 ~ 60 0 ~ 100 , 0 ~ 160 , 0 ~ 250 |
| Environmental conditionibus usum | Temp: -40 ℃ ~ 70 ℃ |
| Vibrationis Rating | Normalis Type: V · H · 3 ; Type seismic (Liquid-repleti genus): V · H · 4 |
| Borden Tubus Material | Qsn4-0.3 , Ocr18ni1mo2ti |
| Case et Iungo Material | 1Cr18ni9ti ANTOLIUM; Sus304 |
| praesidium genus | Ip65 |
| Exsequendam signa | GB / T MCCXXVI ANTOLIUM; J. / T (VI) DCCCIV |
| Nota: I. iuncturam relatorum potest customized secundum user requisita. | |
◆ externa dimensiones:

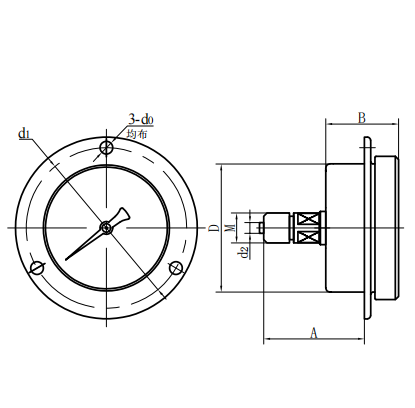

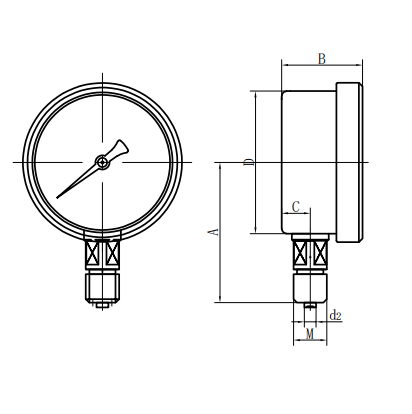

| Radiales Direct Type (ⅰ) | Axial eccentrici recta type (ⅱ) |

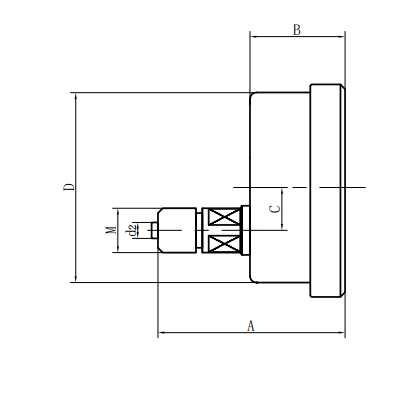

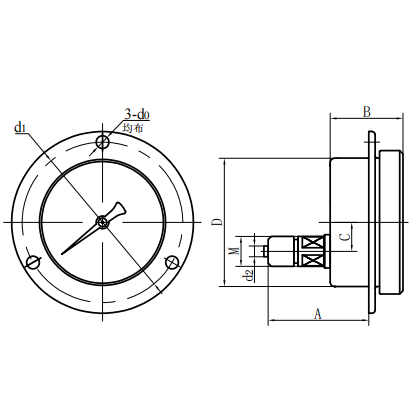

| Axial concentric Direct Type (III) | Axial eccentrici inserta type (iv) |

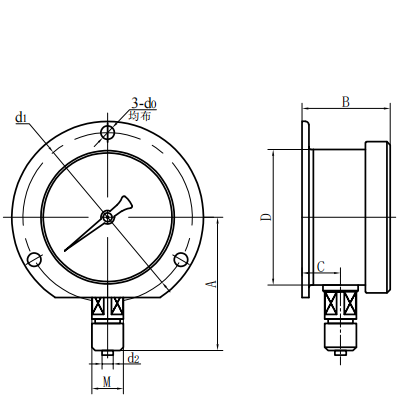

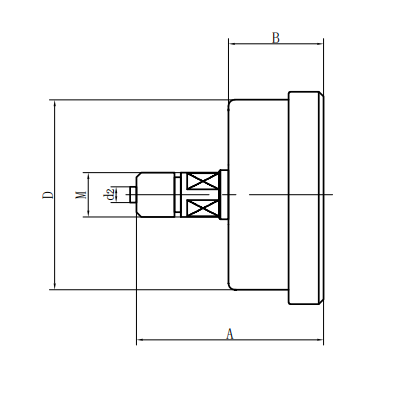

| Axial concentricae Type (V) | Radiale convexa Type (VI) |
| Model Number | Altiore dimensiones (mm) | |||||||
| A | B | C | D | D0 | D1 | D2 | M | |
| Yc60- Ⅰ | 56 | 33 | 11 | Φ 60 | / | / | Φ 5 | M14 × 1.5 |
| Yc60- Ⅱ | 61 | 32.5 | 18 | Φ 60 | / | / | Φ 5 | |
| Yc60- Ⅲ | 61 | 32.5 | / | Φ 60 | / | / | Φ 5 | M14 × 1.5 |
| Yc60- Ⅳ | 55 | 32.5 | 18 | Φ 60 | Φ 5 | Φ 75 | Φ 5 | |
| Yc60- Ⅴ | 55 | 32.5 | / | Φ 60 | Φ 5 | Φ 75 | Φ 5 | M14 × 1.5 |
| Yc60- Ⅵ | 56 | 33 | 11 | Φ 60 | Φ 5 | Φ 75 | Φ 5 | M14 × 1.5 |
| Yc100- Ⅰ | 90 | 48 | 15 | Φ 100 | / | / | Φ 6 | M20 × 1.5 |
| Yc100- Ⅱ | 83 | 44 | 34 | Φ 100 | / | / | Φ 6 | M20 × 1.5 |
| Yc100- Ⅳ | 68 | 44 | 34 | Φ 100 | Φ 6 | Φ 118 | Φ 6 | M20 × 1.5 |
| Yc100- Ⅵ | 90 | 48 | 15 | Φ 100 | Φ 6 | Φ 118 | Φ 6 | M20 × 1.5 |
| Yc150- Ⅰ | 117 | 51 | 16.5 | Φ 150 | / | / | Φ 6 | M20 × 1.5 |
| Yc150- Ⅱ | 92 | 52 | 55 | Φ 150 | / | / | Φ 6 | M20 × 1.5 |
| Yc150- Ⅳ | 69 | 52 | 55 | Φ 150 | Φ 6 | Φ 165 | Φ 6 | M20 × 1.5 |
| Yc150- Ⅵ | 117 | 53 | 28 | Φ 150 | Φ 6 | Φ 165 | Φ 6 | M20 × 1.5 |
