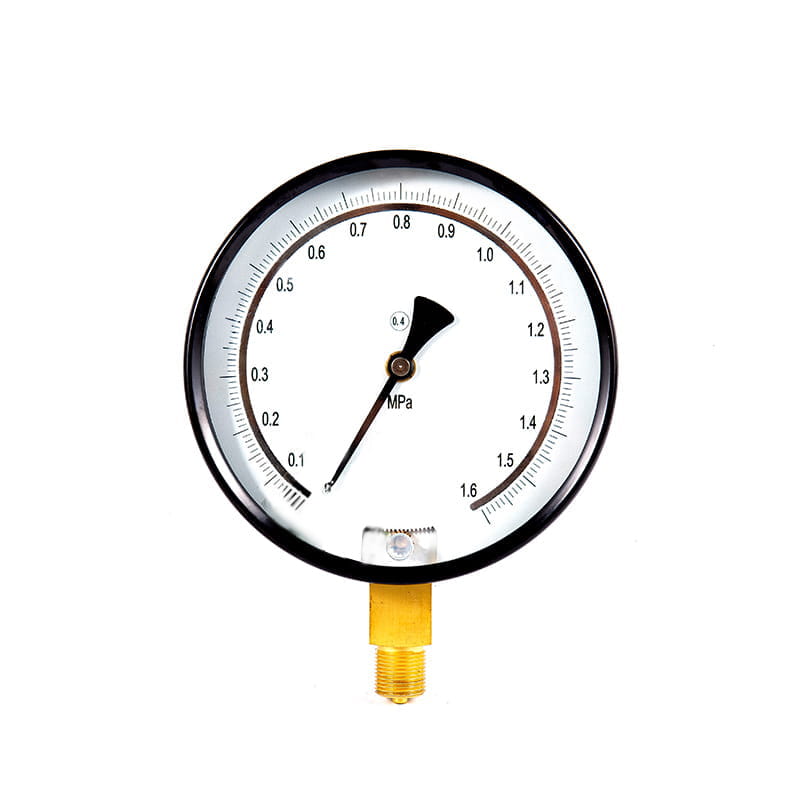

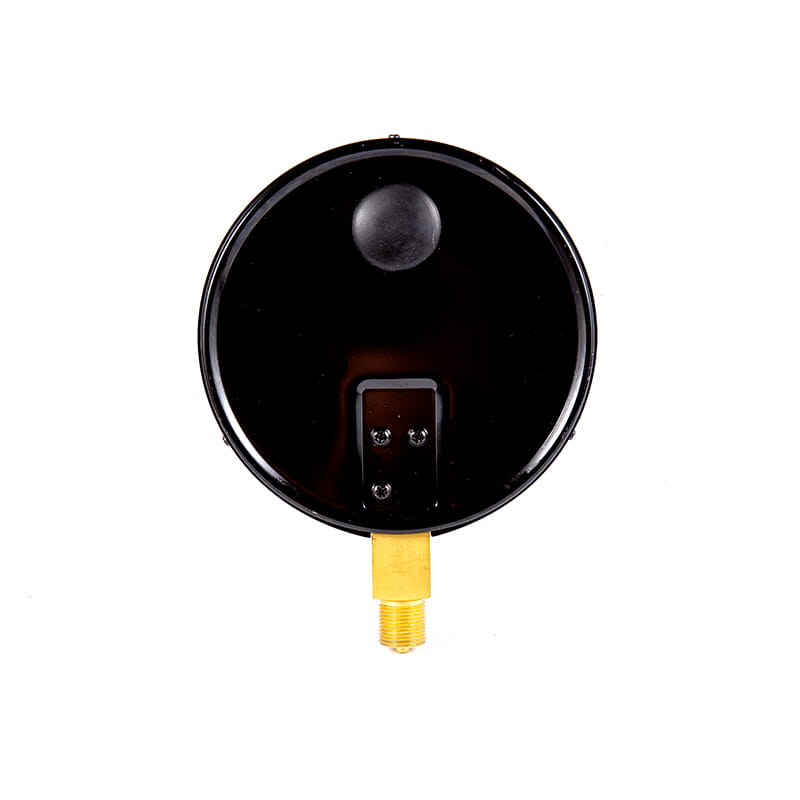

◆ Model: yj150 yj150a
◆ Usus: Haec series instrumenta sunt maxime ad calibrate Industrial vel civilis Ordinarius pressura Gauges. Potest etiam esse ad verius metimur pressura non-mordax, non-crystallizing et non-instrumentis media ut aeris allimis et mixturae structural ferro ad processum site.
Series instrumentis in scale linea sub occasum speculum anulum, in usu potest facere Lectio error est minimized.a typus cum nulla fabrica, in processus of usu, si non revertetur ad redigendum, ut non redit ad reducere in errore.
◆ technica parametri :
| Model Number | Yj150 | Yj150a | |
| Nominis diameter | Φ 150 | ||
| Formam installation | Ⅰ | * | * |
| Ⅳ | * | * | |
| Thread Connector | M20 × 1.5 | ||
| Genus accuracy | 0.4 | ||
| Mensuram range ( MPA ) | Vacante: -0.1 ~ 0 Vacuum pressura: -0.1 ~ -0.1 0,06 ~ -0.1 0.15 ~ -0.1 0,3 ~ -0.1 0,5 ~ -0.1 0,9 ~ 1.5 -0.1 ~ 2.4 Pressura: 0 ~ 0.1 0 ~ 0.16 0 ~ 0,25 0 ~ 0,4 0 ~ 0.6 0 ~ I 0 ~ 1.6 0 ~ 2.5 0 ~ IV 0 ~ 6 0 ~ X 0 ~ XVI 0 ~ XXV 0 ~ XL 0 ~ 60 0 ~ 100 | ||
| Environmental conditionibus usum | Temp: 20 ℃ ± 3 ℃ | ||
| Vibrationis Rating | V · H · 2 | ||
| praesidium genus | Ip54 | ||
| Exsequendam signa | GB / T MCCXXVII | ||
| Nota: I. iuncturam relatorum potest customized secundum user requisita. | |||
◆ externa dimensiones:

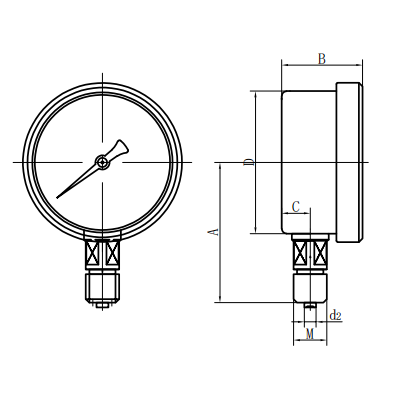

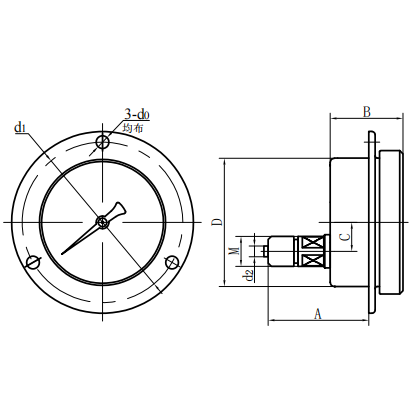

| Radiales Direct Type (ⅰ) | Axial eccentrici recta Type (ⅱ) |
| Model Number | Altiore dimensiones ( mm ) | |||||||
| A | B | C | D | D0 | D1 | D2 | M | |
| Yj150- Ⅰ Yj150a- Ⅰ | 113 | 51 | 21 | Φ 150 | / | / | Φ 6 | M20 × 1.5 |
| Yj150- Ⅳ Yj150a- Ⅳ | 79 | 51 | 55 | Φ 150 | Φ 6 | Φ 165 | Φ 6 | M20 × 1.5 |
