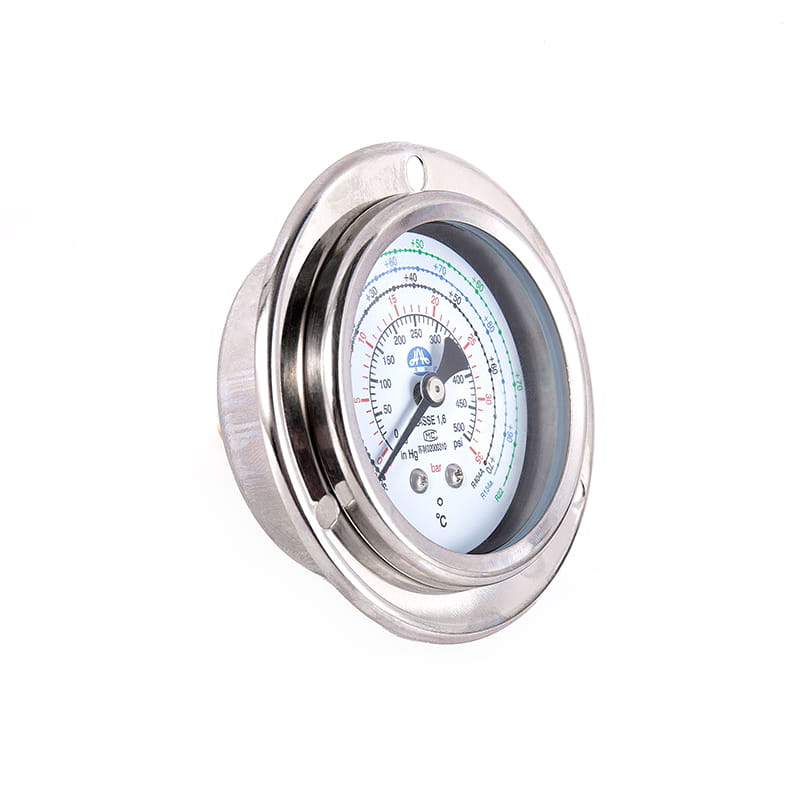

◆ Model: YLM60 YLM100 YLM150
◆ Application: Haec series instrumenta sunt speciales instrumenta ad deprehendens humilis temperatus vel specialis refrigerandi medium, maxime in aerem condiciones refrigerator, aquae chiller, aer dryer aut coetu Refrigerant Meter Group Ratio.
Potest etiam facere diversum refrigerare multi-labeling tabulata secundum customers 'requisita, et sunt multa genera caps et casibus (Helvetica style) ad teloniatores eligere.
Ob optimized COPULATOR consilium et speciale considerations in Lorem Welding materiae et pressura sentire components, haec series products habet optimum habet et anti-vibrationis, ita et damnum in refrigerationem et ex eliminated, et in productum et in Refrigeration est ex Refrigeration et exaltatione et in Refrigeration est exaltatione et exaltatione et in Refrigeration est ex Refrigeration et Product of Quality Preme et Damnum est Refrigeration System et Products et Damnum est ex Refrigeration et exaltatio est exaltatio.
◆ technica parametri :
| Model Number | Ylm60 | Ylm100 | Ylm150 | |
| Nominis diameter | Φ 60 | Φ 100 | Φ 150 | |
| Adscendens type | Ⅰ | * | * | * |
| Ⅱ | * | * | * | |
| Ⅲ | * | / | / | |
| Ⅳ | * | * | * | |
| Ⅴ | * | / | / | |
| Ⅵ | * | * | * | |
| Thread Connector | M14 × 1.5 | M20 × 1.5 | ||
| Genus accuracy | 2.5 | 1.6 | ||
| Mensuram range ( MPA ) | Minimum intentione: (- 30 ~ 0 ...... 15 ) kg , 1.8MPA oppressive :( 0 ~ 35 ) kg , 3.8MPA | |||
| Media Type Specification | R134a , R22a , R404a , R407a | |||
| Environmental conditionibus usum | Temp: -20 ℃ ~ 60 ℃; relative humiditas: ≤ LXXX% | |||
| Vibrationis Rating | V · H · 3 | |||
| praesidium genus | Ip54 | |||
| Exsequendam signa | GB / T MCCXXVI | |||
| Nota: I. iuncturam relatorum potest customized secundum user requisita. | ||||
◆ externa dimensiones:

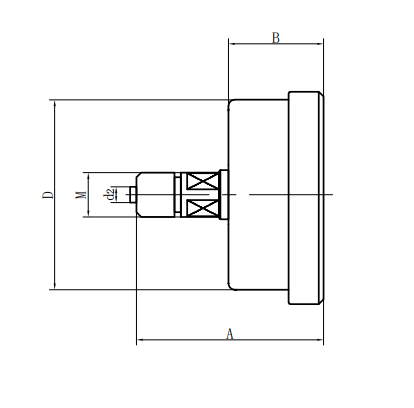

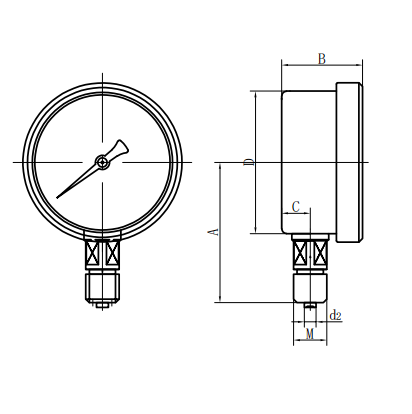

| Radiales Direct Type (ⅰ) | Axial eccentrici recta type (ⅱ) |

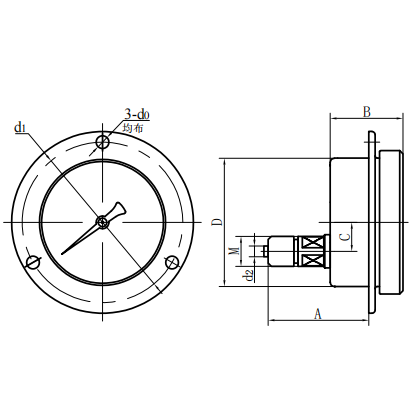

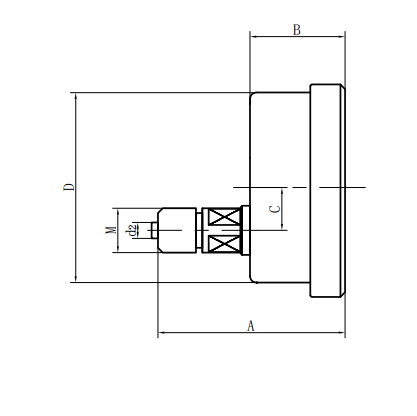

| Axial concentric Direct Type (III) | Axial eccentrici inserta type (iv) |

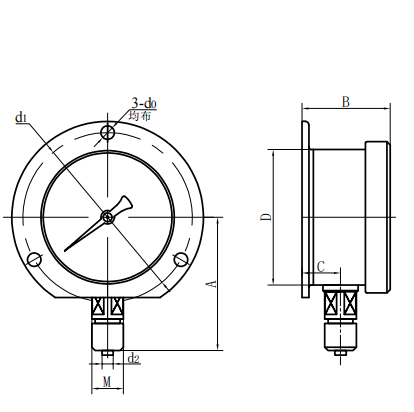

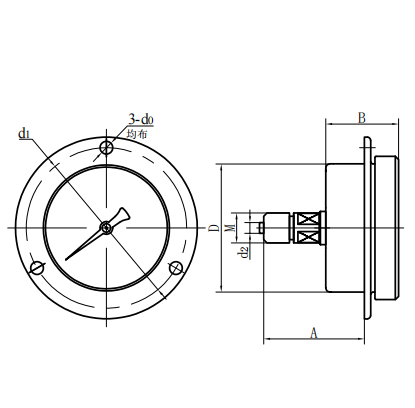

| Axial concentricae Type (V) | Radiale convexa Type (VI) |
| Model Number | Altiore dimensiones ( mm ) | |||||||
| A | B | C | D | D0 | D1 | D2 | M | |
| Ylm60 -Ⅰ | 56 | 33 | 11 | Φ 60 | / | / | Φ 5 | M14 × 1.5 |
| Ylm60 -Ⅱ | 61 | 32.5 | 18 | Φ 60 | / | / | | |
| Ylm60 -Ⅲ | 61 | 32.5 | / | Φ 60 | / | / | Φ 5 | M14 × 1.5 |
| Ylm60 -Ⅳ | 55 | 32.5 | 18 | Φ 60 | Φ 5 | Φ 75 | | |
| Ylm60 -Ⅴ | 55 | 32.5 | / | Φ 60 | Φ 5 | Φ 75 | Φ 5 | M14 × 1.5 |
| Ylm60 -Ⅵ | 56 | 33 | 11 | Φ 60 | Φ 5 | Φ 75 | Φ 5 | M14 × 1.5 |
| Ylm100 -Ⅰ | 90 | 48 | 15 | Φ 100 | / | / | Φ 6 | M20 × 1.5 |
| Ylm100 -Ⅱ | 83 | 44 | 34 | Φ 100 | / | / | Φ 6 | M20 × 1.5 |
| Ylm100 -Ⅳ | 68 | 44 | 34 | Φ 100 | Φ 6 | Φ 118 | Φ 6 | M20 × 1.5 |
| Ylm100 -Ⅵ | 90 | 48 | 15 | Φ 100 | Φ 6 | Φ 118 | Φ 6 | M20 × 1.5 |
| Ylm150 -Ⅰ | 117 | 51 | 16.5 | Φ 150 | / | / | Φ 6 | M20 × 1.5 |
| Ylm150 -Ⅱ | 92 | 52 | 55 | Φ 150 | / | / | Φ 6 | M20 × 1.5 |
| Ylm150 -Ⅳ | 69 | 52 | 55 | Φ 150 | Φ 6 | Φ 165 | Φ 6 | M20 × 1.5 |
| Ylm150 -Ⅵ | 117 | 53 | 28 | Φ 150 | Φ 6 | Φ 165 | Φ 6 | M20 × 1.5 |
