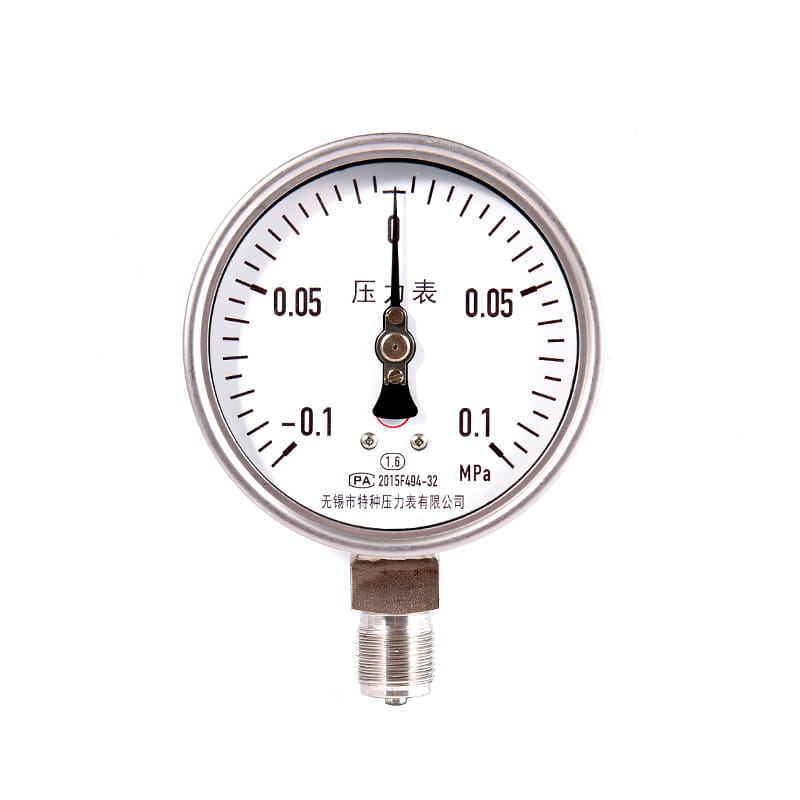

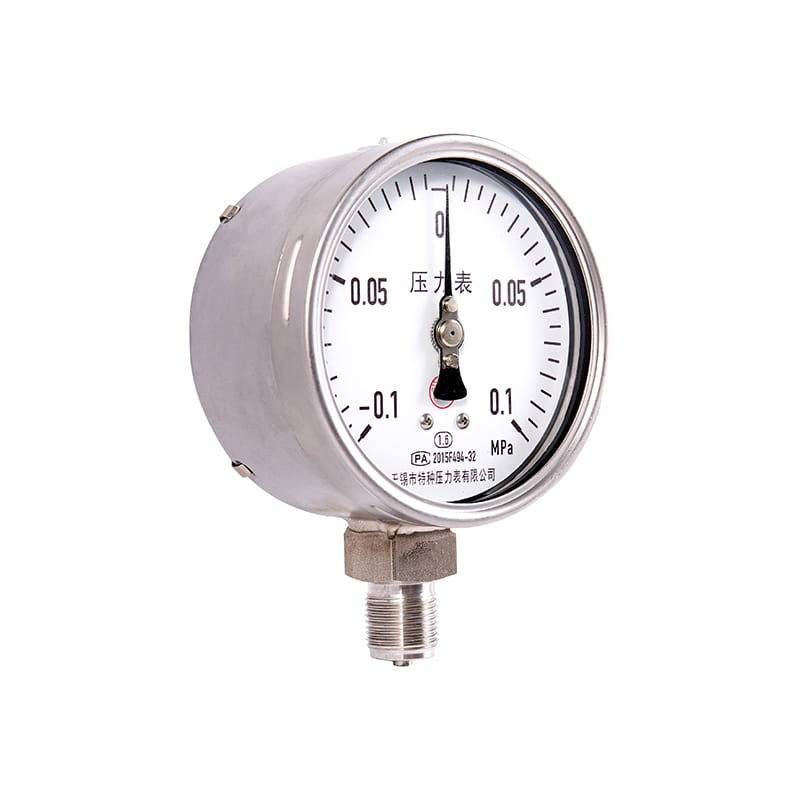

◆ Model: YQ10 YQ10 YQ10 YQ10 YQ10 YQ65 YQ16

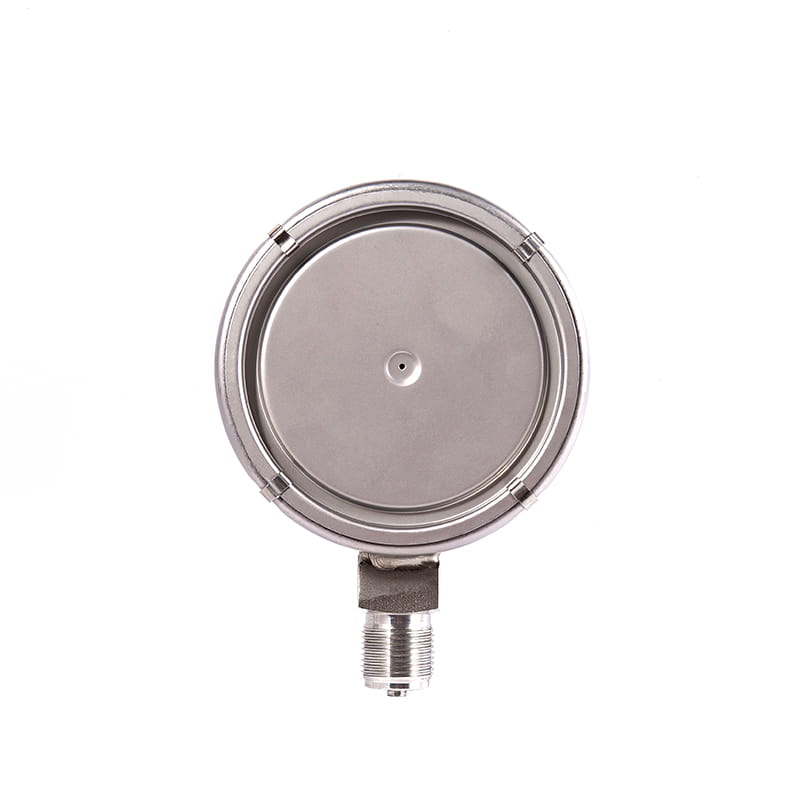

◆ Use: This series of gauges are all made of stainless steel, with internal safety partition and pressure relief holes at the top to release excessive pressure inside the case due to rupture caused by overload or fatigue of elastic elements, to protect the safety of operators and equipment and facilities, and there is a liquid-filled stopper and an internal compensating diaphragm at the top of the gauge, which can be filled up with liquid at the site. Liquid-repleti salus gauges sunt tremor-repugnant, ne damnum ad intus de METIOR debitum ad vibrationem et lubricating internum components ad minimize gerunt et corrosio.
Hi Gauges sunt late in EXERCITATIO, conflans, eget, cibum, pharmaceutical, marine, offshore oleum tabulatis et aliis industrias.
| Model Number | Yq60 | Yq100 | Yq150 | |
| Nominis diameter | Φ 60 | Φ 100 | Φ 150 | |
| Formam installation | Ⅰ | * | * | * |
| Ⅱ | * | * | * | |
| Ⅲ | * | / | / | |
| Ⅳ | * | * | * | |
| Ⅴ | * | / | / | |
| Ⅵ | * | * | * | |
| Thread Connector | M14 × 1.5 | M20 × 1.5 | ||
| Genus accuracy | 2.5 | 1.6 | ||
| Mensuram range ( MPA ) | Vacante: -0.1 ~ 0 Vacuum pressura: -0.1 ~ -0.1 0,06 ~ -0.1 0.15 ~ 0.3 -0.1 ~ -0.1 0,5 ~ -0.1 0,9 ~ 1.5 -0.1 ~ 2.4 Pressura: 0 ~ 0.1 0 ~ 0.16 0 ~ 0,25 0 ~ 0,4 0 ~ 0.6 0 ~ I 0 ~ 1.6 0 ~ 2.5 0 ~ IV 0 ~ 6 0 ~ X 0 ~ XVI 0 ~ XXV 0 ~ XL 0 ~ 60 0 ~ C 0 ~ CLX 0 ~ 250 | |||
| Environmental conditionibus usum | Temp: -40 ℃ ~ 70 ℃ | |||
| Vibrationis Rating | V · H · 3 | |||
| Borden Tubus Material | Ocr18ni1mo2ti ANTOLIUM; Sus316 ANTOLIUM; Sus316l | |||
| Case et Iungo Material | 1Cr18ni9ti ANTOLIUM; Sus304 | |||
| praesidium genus | Ip65 | |||
| Exsequendam signa | GB / T1226 | |||
| Nota: I. iuncturam relatorum potest customized secundum user requisita. | ||||

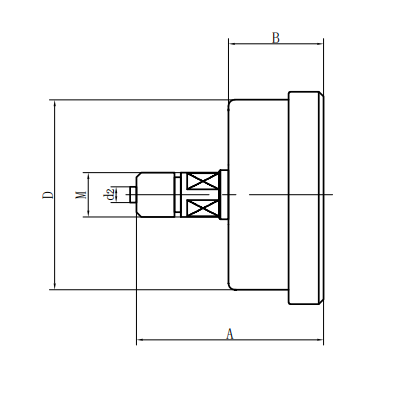

◆ externa dimensiones:

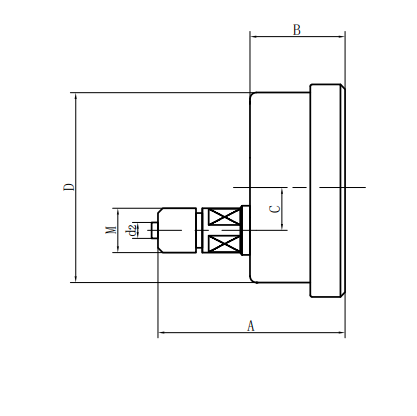

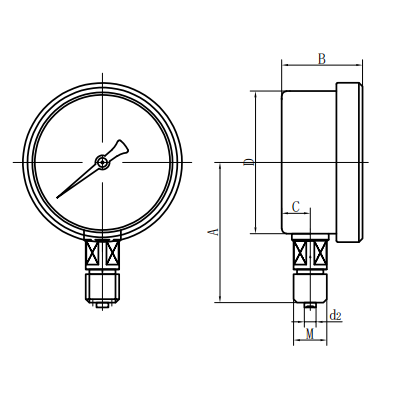

| Radiales Direct Type (ⅰ) | Axial eccentrici recta type (ⅱ) |

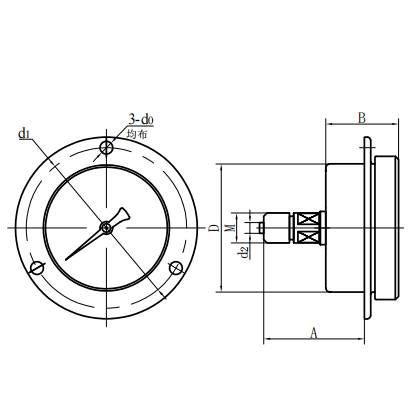

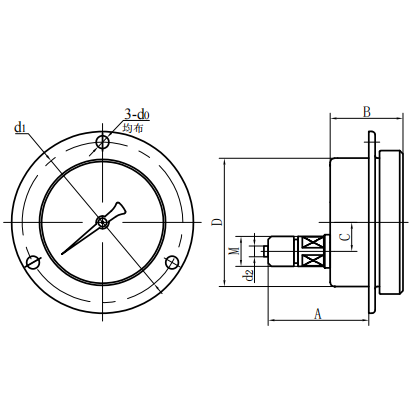

| Axial concentric Direct Type (III) | Axial eccentrici inserta type (iv) |

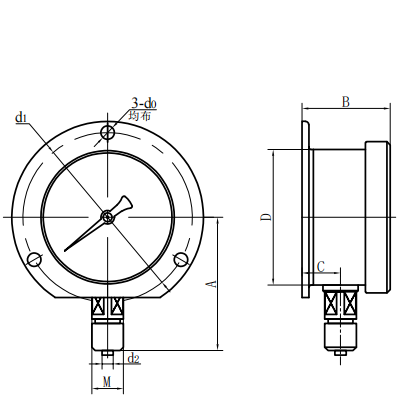

| Axial concentricae Type (V) | Radiale convexa Type (VI) |
| Model Number | Altiore dimensiones ( mm ) | |||||||
| A | B | C | D | D0 | D1 | D2 | M | |
| Yq60- Ⅰ | 56 | 33 | 11 | Φ 60 | / | / | Φ 5 | M14 × 1.5 |
| Yq60- Ⅱ | 61 | 32.5 | 18 | Φ 60 | / | / | Φ 5 | |
| Yq60- Ⅲ | 61 | 32.5 | / | Φ 60 | / | / | Φ 5 | M14 × 1.5 |
| Yq60- Ⅳ | 55 | 32.5 | 18 | Φ 60 | Φ 5 | Φ 75 | Φ 5 | |
| Yq60- Ⅴ | 55 | 32.5 | / | Φ 60 | Φ 5 | Φ 75 | Φ 5 | M14 × 1.5 |
| Yq60- Ⅵ | 56 | 33 | 11 | Φ 60 | Φ 5 | Φ 75 | Φ 5 | M14 × 1.5 |
| Yq100- Ⅰ | 90 | 48 | 15 | Φ 100 | / | / | Φ 6 | M20 × 1.5 |
| Yq100- Ⅱ | 83 | 44 | 34 | Φ 100 | / | / | Φ 6 | M20 × 1.5 |
| Yq100- Ⅳ | 68 | 44 | 34 | Φ 100 | Φ 6 | Φ 118 | Φ 6 | M20 × 1.5 |
| Yq100- Ⅵ | 90 | 48 | 15 | Φ 100 | Φ 6 | Φ 118 | Φ 6 | M20 × 1.5 |
| Yq150- Ⅰ | 117 | 51 | 16.5 | Φ 150 | / | / | Φ 6 | M20 × 1.5 |
| Yq150- Ⅱ | 92 | 52 | 55 | Φ 150 | / | / | Φ 6 | M20 × 1.5 |
| Yq150- Ⅳ | 69 | 52 | 55 | Φ 150 | Φ 6 | Φ 165 | Φ 6 | M20 × 1.5 |
| Yq150- Ⅵ | 117 | 53 | 28 | Φ 150 | Φ 6 | Φ 165 | Φ 6 | M20 × 1.5 |
