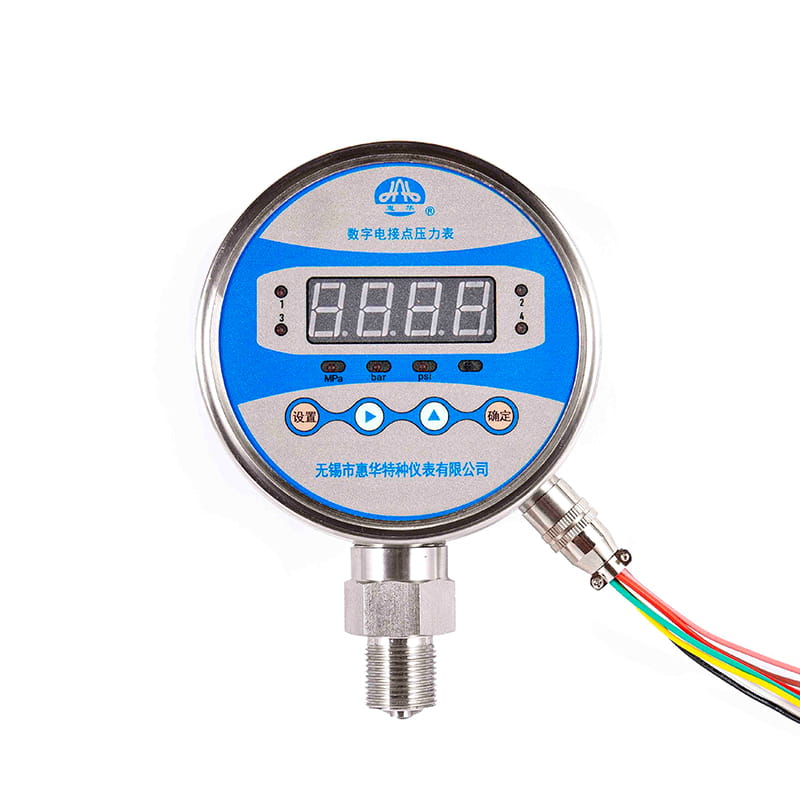

Ysx seriem intelligentes digital (electrica contactus) pressura MODULUS

◆ exemplar: Ysx 100

◆ Introduction: Intelligent digital electric word contact pressure gauge is a set of pressure display, signal control, pressure transmission in one of the intelligent products carefully developed by our company, using high-precision diffusion silicon pressure sensor, high-speed analog-to-digital conversion chip, combined with a variety of pressure control, analog signal practical module software program, with high cost performance, stable and reliable work, long service life and other advantages.

Quadrantem DUXERIT Digital ostentationem pro patet Lectio in tenebris. MPA , KG / CM2 , Psi , sera Et alias pressura unitates potest switched ad arbitrium.

A varietate moduli exstat munera, multi-alveo intelligentes signum output, ut processus imperium control brevibus et practical:

Bit imperium signum: Nullam, thyristor, transistor ( PNP type vel Npn Typus) libitum.

Analog Transmissus annuit; 4ma ~ 20MA DC vexillum current signum, 1v ~ 5V , 1v ~ 10v Latin DC voltage signum sunt ad libitum, et range migrationem munus.

Hoc est pressura fontem overload praesidium occasum protegere in apparatu ex tuto statu de pressura usu. Tesseras cincinno munus in parametri occasum prohibet alios ab iure mutantur in parametri et afficiens normalis operatio de fabrica.

QUOTE

◆ Technical parametri:

Exemplar	Yxs100
Installation:	Ⅰ, ⅱ, ⅳ, ⅵ
Apta relatorum	M20 × 1.5
Genus accuracy	0.5 ANTOLIUMANTOLIUM; 1.0 ANTOLIUM; 1.6 (Libitum)
Mensurae ( Kpa )	-40 ~ 0 -25 ~ 0 -16 ~ 0 -10 ~ 0 -6 ~ 0 -4 ~ 0 0 ~ IV 0 ~ VI 0 ~ X 0 ~ XVI 0 ~ XXV 0 ~ 40 -2 ~ II -3 ~ III -5 ~ V -8 ~ VIII -12 ~ XII -20 ~ 20
Mensurae ( MPA )	Verus Space: -0.1 ~ 0 Vacuum pressura: -0.1 ~ -0.1 0,06 ~ -0.1 0.15 ~ -0.1 0,3 ~ -0.1 0,5 ~ -0.1 0,9 ~ 1.5 -0.1 ~ 2.4 Pressura: 0 ~ 0.1 0 ~ 0.16 0 ~ 0,25 0 ~ 0.4 0 ~ 0,6 0 ~ I 0 ~ 1.6 0 ~ 2.5 0 ~ IV 0 ~ 6 0 ~ X 0 ~ XVI 0 ~ XXV 0 ~ XL 0 ~ LX 0 ~ 100
Environmental conditionibus usum	Temperature: -10 ° C 85 ° C; Relativum humiditas: 5 % ~ 85 %
Electrica parametri	★ Power Supple (libitum): 24V DC ; 220V ac ★ Power consummatio: ≤ 1.5W ★ Relay output: Max Lond: 3a 220v ac; 3 30v DC Electrica Vita: 100,000 temporum ★ Transistor output: Max Lond: 0.5a 24v DC ★ Thyristor output: 5A 220v ac Electrica Vita: 1000000 temporum ★ imperium channel: independens quattuor-modo switch unitas potest esse arbitrium intra range ★ Analog signum output: Standard current signum: ( 4 ~ 20 ) ma DC Latin Voltage Signum: ( 1 ~ 5 ) V ( 1 ~ 10 ) V DC
Ingressu praesidio	Ip63
Seismic rating	V · H · 3
Plus rhoncus rhoncus	X% de range
Data Update Rate	3 temporum / seco
LIGNUS	Placere referuntur ad disciplinam manual pro details
Urgeant vexillum	J. / T (VII) CCCXCII
Note: Potest etiam fieri in pipe relatorum vel attenuatis pipe relatorum secundum user requisita (videatur Electio Libri).

◆ ◆

Radiales Direct (I)

AXIBILIS Direct Direct (II.)

Axial eccentrici rubor (iv.)

Radiale convexa monte (VI.)

Exemplar	Dimensiones ( mm )
Exemplar	A	B	C	D	D0	D1	D2	M
Yxs100- Ⅰ	100	48	16	Φ 100	/	/	Φ 6	M20 × 1.5
Yxs100- Ⅱ	152	48	19	Φ 100	/	/	Φ 6	M20 × 1.5
Yxs100- Ⅳ	90	48	19	Φ 100	Φ 6	Φ 118	Φ 6	M20 × 1.5
Yxs100- Ⅵ	100	48	16	Φ 100	Φ 6	Φ 118	Φ 6	M20 × 1.5
