WSSXCH Series Rubrum Electric Contact Bimetallic Thermometrum

◆ Model: Wssxch, IV , WSSXCH V

◆ Application: Haec series thermometris habet characteres non Mercurius damnum, patet indication, crusta et inpulsa resistentia. Apta in-site inspectionem liquorum, vapores et vapores ad humilis ad medium temperaturis.

Cum instructum correspondentes electrica components, potest mitteret terror aut automatic control ad temperatus ratio ut metiri et imperium.

The electrical contact of this series of thermometers is improved into a vacuum device, which avoids the poor contact caused by oxidation of the contact, so it has the characteristics of fast and sensitive response and reliable contact contact, and is a rookie that can replace the magnetic electric contact thermometer under the working conditions of low power and low voltage.

Instrumentum est de immaculatam ferro, quod habet bonum IMPERVIUS et corrosio resistentia. Hoc est late in PETROLEUM, eget, Metallurgy, textile, cibum et aliis industries.

QUOTE

◆ Technical parametri:

Exemplar	Wssxch, IV					WSSXCH V
Nominis diameter (mm).	Φ 100					Φ 150
Apta relatorum	M27 × 2
Diametri tutela fistulam (mm).	10
Tutela Tube sustinere pressura (MPA).	6.3
Genus accuracy	1.5
Mensurae ( ° C.) )	-60 ~ 0	0 ~ 50		0 ~ 100			0 ~ 150
Cell valorem ( ° C.) )	1	1		2			2
Mensurae ( ° C.) )	0 ~ 200	0 ~ 300		0 ~ 400			0 ~ 500
Cell valorem ( ° C.) )	5	5		10			10
Insertio longitudinem (mm).	L = LXXV ANTOLIUM; 100 ANTOLIUM; 150 ANTOLIUM; 200 ANTOLIUM; 250 ANTOLIUM; 300 ANTOLIUM; 400 ANTOLIUM; 500 ┅┅ 2000
Tempus constant	≤ 40s
Electrica parametri	★ rated voltage: 24V DC ★ Rated Current: 0.25a ★ Electrical Vita: 105 temporum ★ imperium modus: plenum scale potest adjust in superioribus et inferioribus fines, superioris superioris fines (duplici superioris fines), inferioris fines (duplices inferioris) et tardi radi switches
LIGNUS	1		2		3			4
	Superius terminum output		Lower limit output		Publica output			PRAESENTATUS
Ingressu praesidio	Ip55
Urgeant vexillum	J. / T (VIII) DCCCIII
Nota: De iuncturam filo fieri potest in pipe relatorum G1 / II , G3 / IV Itaque secundum user requisita.

◆ Dimensiones:

Axial ascendens ( I)

Radiale ascendens ( 11 )

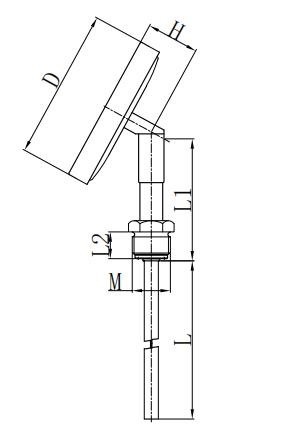

120 ⁰ Adscendens ( 21 )

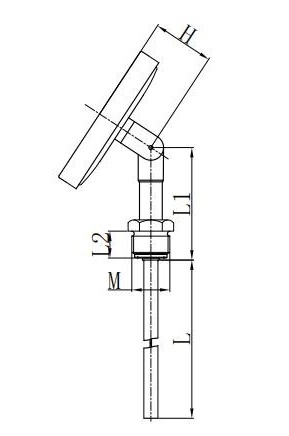

Gimbal ascendens ( 81 )

Exemplar	Dimensiones ( mm )
Exemplar	D	H	L	L1	L2	L3	M
WSSXCG, CDI	Φ 107	/	100 ANTOLIUM; 150 ANTOLIUM; 200 ANTOLIUM; 250 ANTOLIUM; 300 ANTOLIUM; 400 ANTOLIUM; ...... 2000	72	16	42	M27 × 2
WSSXCG, CDXI	Φ 107	46		91	16	42	M27 × 2
WSSXCG-CDXXI	Φ 107	44		82	16	42	M27 × 2
WSSXCG CDLXXXI	Φ 107	58		64	16	42	M27 × 2
WSSXCG, DI	Φ 150	/		72	16	42	M27 × 2
WSSXCG-DXI	Φ 150	36		115	16	42	M27 × 2
WSSXCG, DXXI	Φ 150	44		82	16	42	M27 × 2
WSSXCG, DLXXXI	Φ 150	58		64	16	42	M27 × 2
