◆ Model: YG10 YG100 YG150
◆ Usus: Omnes partes huius seriei Gauges fiunt ex immaculatam ferro et pelagus partes fiunt ex 1Cr18ni9, ocr18ni12mo2ti, Sus316, Sus316L, etc. De Welding cuiusque pars est per specialem processus. Inter eos, corrosio-repugnans summus temperatus pressura MODULUS habet optimum summus temperatus et corrosio-repugnant perficientur, idoneam ad corrosivum environization, potest deprehendere infirma mordy, sed non crystallization, non-coioculta, sed non crystallization, non-coierit, sed non Crystallization, non-coordinationis, sed non Crystallization, non-infirmi mordendo, sed non crystallization, non-consolidation, humilis viscosity altum temperatus, non-humilis viscosity caliditas media. Late in PETROLEUM, eget, pesticide, Flexilis, Naturalis Gas et Alius Industria.
◆ Technica parameTri :
| Model Number | YG60 | Yg100 | Yg150 | ||
| Nominis diameter | Φ 60 | Φ 100 | Φ 150 | ||
| Adscendens type | Ⅰ | * | * | * | |
| Ⅱ | * | * | * | ||
| Ⅲ | * | / | / | ||
| Ⅳ | * | * | * | ||
| Ⅴ | * | / | / | ||
| Ⅵ | * | * | * | ||
| Thread Connector | M14 × 1.5 | M20 × 1.5 | |||
| Genus accuracy | 2.5 | 1.6 | |||
| Mensuram range ( MPA ) | Vacante: -0.1 ~ 0 Vacuum pressura: -0.1 ~ -0.1 0,06 ~ -0.1 0.15 ~ -0.1 0,3 ~ 0.5 -0.1 ~ -0.1 0,9 ~ 1.5 -0.1 ~ 2.4 Pressura: 0 ~ 0.1 0 ~ 0.16 0 ~ 0,25 0 ~ 0,4 0 ~ 0.6 0 ~ I 0 ~ 1.6 0 ~ 2.5 0 ~ IV 0 ~ 6 0 ~ X 0 ~ XVI 0 ~ XXV 0 ~ XL 0 ~ 60 0 ~ 100 , 0 ~ 160 , 0 ~ 250 | ||||
| Environmental conditionibus usum | Tempor : -40 ℃ ~ 70 ℃ | ||||
| Temperamentum | Direct installation: ≤ 150 ℃ | ||||
| Temperature: ≤ 500 ℃ | |||||
| Caliditas effectus errorem | Δ = ± (δ δ K Δ t ) Δ - Quod licere valorem de ostentationem valorem errorem cum ambientium temperatus deviat ex XX ℃ ± V ℃, et licere valorem de XX ℃ ± V ℃. % Δ - absolutum valorem instrumenti in intrinseca errore. % K --Tempature effectus coefficientem cum valore 0,04% / ° C Δ t --| thurmperature in Bourdon Tube ℃ -25 | | ||||
| Vibrationis Rating | V · H · 3 | ||||
| Borden Tubus Material | Ocr18ni1mo2ti ANTOLIUM; Sus316 ANTOLIUM; Sus316l | ||||
| Habitationi, iungo materiales | 1Cr18ni9ti ANTOLIUM; Sus304 | ||||
| Praesidium genus | Ip65 | ||||
| Exsequendam signa | GB / T MCCXXVI | ||||
| Nota: I. iuncturam relatorum potest customized secundum user requisita. | |||||
◆ externa dimensiones:

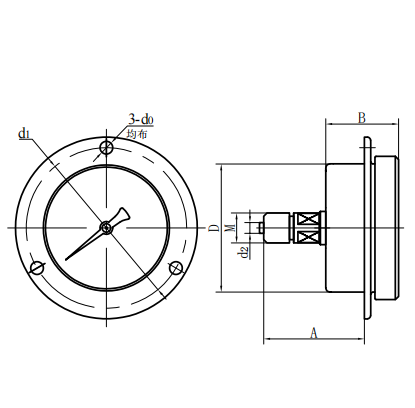

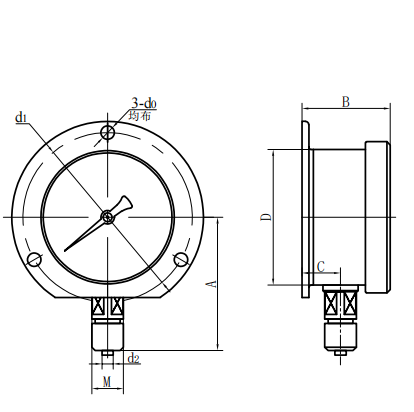

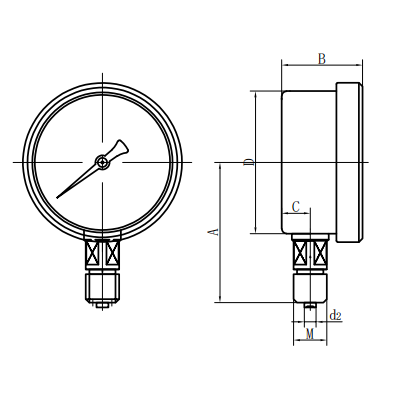

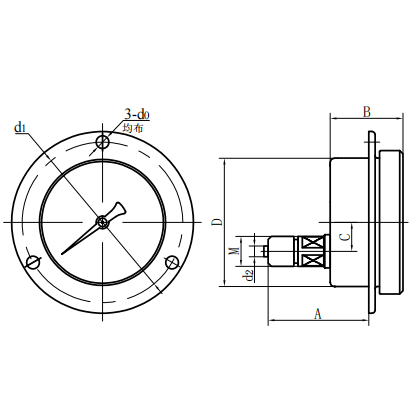

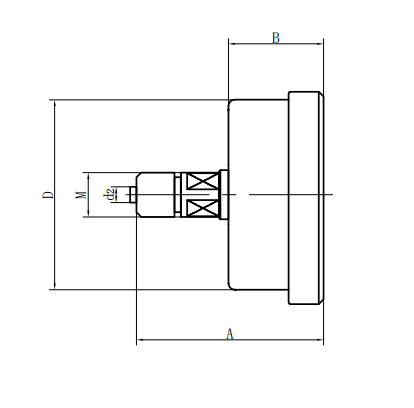

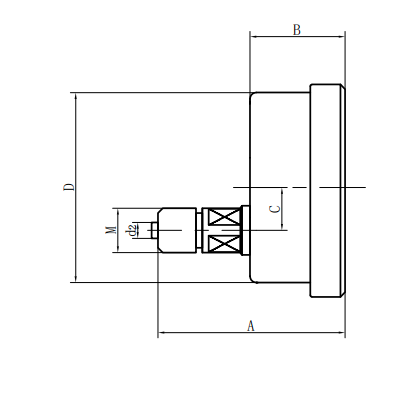

| Radiales Direct Type (ⅰ) | Axial eccentrici recta type (ⅱ) |
| Axial concentric Direct Type (III) | Axial eccentrici inserta type (iv) |
| Axial concentricae Type (V) | Radiale convexa Type (VI) |
| Model Number | Altiore dimensiones ( mm ) | |||||||
| A | B | C | D | D0 | D1 | D2 | M | |
| YG60 -Ⅰ | 56 | 33 | 11 | Φ 60 | / | / | Φ 5 | M14 × 1.5 |
| YG60 -Ⅱ | 61 | 32.5 | 18 | Φ 60 | / | / | Φ 5 | |
| YG60 -Ⅲ | 61 | 32.5 | / | Φ 60 | / | / | Φ 5 | M14 × 1.5 |
| YG60 -Ⅳ | 55 | 32.5 | 18 | Φ 60 | Φ 5 | Φ 75 | Φ 5 | |
| YG60 -Ⅴ | 55 | 32.5 | / | Φ 60 | Φ 5 | Φ 75 | Φ 5 | M14 × 1.5 |
| YG60 -Ⅵ | 56 | 33 | 11 | Φ 60 | Φ 5 | Φ 75 | Φ 5 | M14 × 1.5 |
| Yg100 -Ⅰ | 90 | 48 | 15 | Φ 100 | / | / | Φ 6 | M20 × 1.5 |
| Yg100 -Ⅱ | 83 | 44 | 34 | Φ 100 | / | / | Φ 6 | M20 × 1.5 |
| Yg100 -Ⅳ | 68 | 44 | 34 | Φ 100 | Φ 6 | Φ 118 | Φ 6 | M20 × 1.5 |
| Yg100 -Ⅵ | 90 | 48 | 15 | Φ 100 | Φ 6 | Φ 118 | Φ 6 | M20 × 1.5 |
| Yg150 -Ⅰ | 117 | 51 | 16.5 | Φ 150 | / | / | Φ 6 | M20 × 1.5 |
| Yg150 -Ⅱ | 92 | 52 | 55 | Φ 150 | / | / | Φ 6 | M20 × 1.5 |
| Yg150 -Ⅳ | 69 | 52 | 55 | Φ 150 | Φ 6 | Φ 165 | Φ 6 | M20 × 1.5 |
| Yg150 -Ⅵ | 117 | 53 | 28 | Φ 150 | Φ 6 | Φ 165 | Φ 6 | M20 × 1.5 |
